Security Events — Paid plans

Security Events is available for your zone in Security > Events.

Additionally, Enterprise customers have access to the account-level dashboard in Account Home > Security Center > Security Events.

​​ Adjusting displayed data

You can apply multiple filters and exclusions to narrow the scope of Security Events and adjust the report duration. Modifying the duration, filters, or exclusions affects the analytics data displayed on the entire page including the Activity Log and all graphs.

​​ Add filters

You can adjust the scope of analytics by manually entering filter conditions. Alternatively, select Filter or Exclude to filter by a field value. These buttons appear when you hover the analytics data legend.

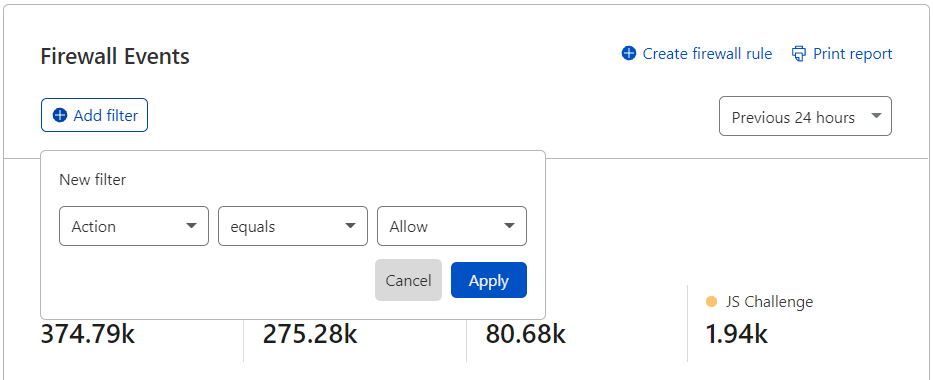

To manually add a filter:

1. Under Security Events, select Add filter.
2. Select a field, an operator, and a value. For example, to filter events by IP address, select IP for Action, select equals for the operator, and enter the IP address.
3. Select Apply.

Take the following into account when entering filter values:

• Do not add quotes around values.
• Do not enter the AS prefix when entering ASN numbers. For example, enter 1423 instead of AS1423.
• Wildcards are not supported.

​​ Adjust report duration

To adjust report duration, select the desired duration from the dropdown in Security Events.

The available report duration values depend on your Cloudflare plan. Refer to Availability for details.

​​ Create custom rule from current filters

​​ Events summary

The Events summary section provides the number of security events on traffic during the selected time period, grouped according to the selected dimension (for example, Action, Host, Country, or ASN).

You can adjust the displayed data according to one of the values by selecting Filter or Exclude when hovering the legend.

​​ Events by service

The Events by service section lists the activity per Cloudflare security feature (for example, Managed rules or API Shield).

You can adjust the scope of Security Events to one of the displayed services by selecting Filter or Exclude when hovering the legend or by selecting the corresponding graph bar.

​​ Top events by source

In Top events by source you can find details of the traffic flagged or actioned by a security feature — for example, IP Addresses, User Agents, Paths, and Countries.

You can adjust the scope of Security Events to one of the listed source values by selecting Filter or Exclude when hovering the value.

​​ Activity log

The Activity log summarizes security events by date to show the action taken and the applied Cloudflare security feature.

Security events are shown by individual event rather than by request. For example, if a single request triggers three different security features, the security events will show three individual events in the Activity log.

Expand each event to check its details, and define filters and exclusions based on the event’s field values. Select the Filter or Exclude button when hovering a field to add the field value to the filters or exclusions list of the displayed analytics. To download the event data in JSON format, select Export event JSON.

​​ Displayed columns

To configure the columns displayed in the Activity log, select Edit columns. This gives you flexibility depending on the type of analysis that you need to perform.

For example, if you are diagnosing a bot-related issue, you may want to display the User agent and the Country columns. On the other hand, if you are trying to identify a DDoS attack, you may want to display the IP address, ASN, and Path columns.

​​ Event actions

For details on most actions that appear in the Activity Log, refer to Actions.

Besides the actions you can select when configuring rules in Cloudflare security products, you may also find events with the following associated actions:

• Connection Close
• Force Connection Close

For details on these actions, refer to HTTP DDoS Attack Protection parameters.

The Managed Challenge (Recommended) action that may appear in the Activity Log is available in the following security features and products: WAF custom rules, rate limiting rules, Bot Fight Mode, IP Access rules, User Agent Blocking rules, and firewall rules (deprecated).

​​ Export activity log data

You can export a set of up to 500 raw events from the Activity log in JSON format. Export event data to combine and analyze Cloudflare data with your own stored in a separate system or database, such as a SIEM system. The data you export will reflect any filters you have applied.

To export the displayed events (up to 500), select Export in the Activity log.

​​ Share Security Events filters

When you add a filter and specify a report duration (time window) in Security Events, the Cloudflare dashboard URL changes to reflect the parameters you configured. You can share that URL with other users so that they can analyze the same information that you see.

For example, after adding a filter for Action equals Managed Challenge and setting the report duration to 72 hours, the URL should look like the following:

https://dash.cloudflare.com/{account_id}/example.net/security/events?action=managed_challenge&time-window=4320

​​ Print or download PDF report

To print or download a snapshot report from your security events dashboard, select Print report in Security Events. Your web browser’s printing interface will present you with options for printing or downloading the PDF report.

The generated report will reflect all applied filters.
